Offset Linear Drain, 30 Inch Side Outlet Linear Drain Complete Set, Square

SereneDrains 30 Inch Offset Side Outlet Linear Shower Drain With Rubber Gasket & Hair/Debris Strainer and ABS Drain Base Flange Complete installation Set. (Consult your contractor/plumber if construction code in your state requires ABS or PVC drain flange. By default we ship ABS drain base flange (PVC also available).

Use the Offset Outlet Linear Drain: If joist is in the center of the shower opening and notching or drilling is not an option. If shower is set on a 4 inch or more concrete and relocation of the drain outlet is costly. If drain outlet already exists on the side of the shower. As well as other shower construction plans. Consult a professional (Central vertical outlet linear drains also available)

• Size Available: 16″, 24:, 30″, 36″, 40″, 48″, 60″ (See details below).
• Designs: Tile Insert Design, Ocean Wave Design, Wind Design, Wedge Design, Traditional Square Design, Broken Lane Design.

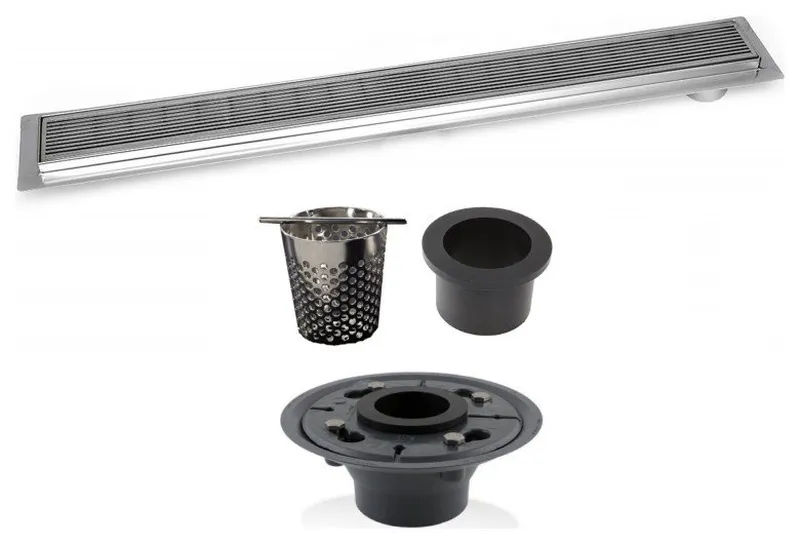

Drain Includes: 100% stainless steel channel body & grate, puller key, waterproofing membrane sheet around the drain flange (not required but included), rubber gasket, hair trap, ABS Drain Flange, Installation Instruction. Side outlet drain apex 2.8″ oc of drain end.

Available dimensions:

• Net Size 15″ 3/4″ x 2 3/4″ (visible on floor) 400mm | Overall Size 17″ 1/4″ x 4 3/8″ | Intake sq. in: 12.38
• Net Size 23″ 1/2″ x 2 3/4″ (visible on floor) 600mm | Overall Size 25.2″ x 4 3/8″ | Intake sq. in: 14.96
• Net Size 30″ x 2 3/4″ (visible on floor) 762mm | Overall Size 31.57″ x 4 3/8″ | Intake sq. in: 17.62
• Net Size 35″ 3/8″ x 2 3/4″ (visible on floor) 900mm | Overall Size 37.01″ x 4 3/8″ | Intake sq. in: 20.03.
• Net Size 39″ 3/8″ x 2 3/4″ (visible on floor) 1000mm | Overall Size 40.95″ x 4 3/8″ | Intake sq. in: 21.12
• Net Size 47 1/4″ x 2 3/4″ (visible on floor) 1200mm | Overall Size 48.82″ x 4 3/8″ | Intake sq. in: 26.68
• Net Size 59.05″ x 2 3/4″ (visible on floor) 1500mm | Overall Size 60.63″ x 4 3/8″ | Intake sq. in: 31.67

Perfect for:

• Wheelchair access & barrier-free showers (walk in floor plans).
• Applications: Shower & bath, kitchen, pools, balconies, hotel rooms, gym, spa etc.

Features:

• Side outlet drain apex 2.8″ oc of drain end.
• Designed to be installed into any 2″ shower drain flange.
• Stainless steel brushed nickel finish.
• Superior quality laser cut electropolish finish.
• Bodies are fully welded and leak tested prior to dispatch.
• Compatible with tiles up to 10mm depth (14mm lip).
• Pre-Slope channel. Channel width: 2 3/4″ (70 mm).
• Sized to match standard 1/2″, 1″, 2, and 4″ tile without cutting.
• Drain grade is 16 gauge 304 stainless steel.
• Flow rate: at entrance of shower – 6.3GPM (0.4 l/s); against the wall – 9.5GPM (0.6 l/s).
• Flange body edge designed for use with all types of waterproofing: hot mop, painted or liquid membranes, sheet membrane, vinyl waterproofing etc.

Central vertical outlet linear drains also available. Visit our Houzz shop for more Luxurious Designs.
